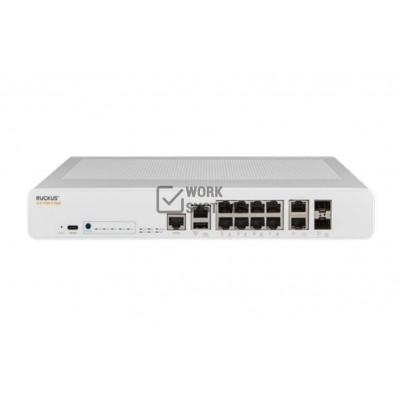

Коммутатор Ruckus ICX7150-C10ZP-2X10GR

Характеристики коммутатора

Jumbo Frames

9 216 Байт

QoS

ACL Mapping and Marking of ToS/DSCP (CoS),ACL Mapping and Marking of 802.1p,ACL Mapping to Priority Queue,Classifying and Limiting Flows Based on TCP Flags,DiffServ Support,Honoring DSCP and 802.1p (CoS),MAC Address Mapping to Priority Queue,Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP,Priority Flow Control

SDN

OpenFlow v1.0 and v1.3,OpenFlow with hybrid port mode,Operates with OpenDaylight SDN Controllers and the applications running on the controller

VLAN

до 4096

Безопасность

IPsec 128/256 AES-GCM (with service module),MACsec,802.1X Authentication,MAC Authentication,Flexible authentication,Web authentication,DHCP snooping,Dynamic ARP inspection,Neighbor Discovery (ND) Inspection,Bi-level Access Mode (Standard- and EXEC-level),EAP pass-through support,IEEE 802.1X username export in sFlow,Protection against Denial of Service (DoS) attacks,Authentication, Authorization, and Accounting (AAA),MAC Address Locking MAC Port Security,Advanced Encryption Standard (AES) with SSHv2,RADIUS/TACACS/TACACS+,Secure Copy (SCP),Secure Shell (SSHv2),Local Username/Password,RFC 5176, RFC 5996, RFC 4303, RFC 6379, RFC 5903, RFC 4868, RFC 4754, RFC 4106, SP800-56A Recommendation

Блок питания

1 x 300 Вт AC

Высокая доступность

Redundant hot-swappable power supplies,Hot-swappable fan trays,Layer 3 VRRP/VRRP-E protocol redundancy,Real-time state synchronization across the stack,Hitless failover and switchover from master to standby stack controller,Hot insertion and removal of stacked units,Layer 2 VSRP switch redundancy,In Service Software Update (ISSU)

Интерфейсы

2 x RJ45 100/1000/2500/5000/10000 Mbps с поддержкой PoE 802.3bt,2 x RJ45 100/1000/2500 Mbps с поддержкой PoE 802.3bt,6 x RJ45 100/1000/2500 Mbps с поддержкой PoE 802.3af/at,2 x SFP+ 10 Gbps

Климатические условия эксплуатации

температура от -5 до 45° C при влажности от 5 до 95% без конденсации

Максимальная дистанция стекирования

10 км

Максимальное количество коммутаторов в стеке

до 12

Наработка на отказ

529 625 часов

Охлаждение

пассивное

Очередей QoS

до 8 на порт

Поддержка IPv4/IPv6 Layer 3 Routing

Static Routing / RIP

Поддержка стандартов IEEE

802.1AB LLDP,802.1D MAC Bridging,802.1p Mapping to Priority Queue,802.1s Multiple Spanning Tree (MST),802.1w Rapid Reconfiguration of Spanning Tree,802.1x Port-based Network Access Control (PNAC),802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD),802.3ab 1000BASE-T,802.1 AX-2008 Link Aggregation,802.3ae 10 Gigabit Ethernet,802.3af Power over Ethernet,802.3at Power over Ethernet Plus,802.3u 100Base-TX,802.3x Full duplex and Flow Control,802.3z 1000Base-SX/LX,802.3 MAU MIB (RFC 2239),802.3ba 40 and 100 Gbps Ethernet,802.1AE-MACsec (with license),802.3az Energy Efficient Ethernet,802.1Q VLAN Tagging,802.1BR Bridge Port Extension

Пропускная способность

до 120 Гбит/с

Расширенные функции IPv4/IPv6 Layer 3 Routing (OSPF, BGP, VRRP,

поддерживаются

Расширенные функции L3

IPv4 and IPv6 dynamic routes,OSPF v2, OSPF v3 (IPv6),PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4/IPv6 multicast routing functionality),PBR,Virtual Route Redundancy Protocol VRRP v3 (IPv6),VRRP-E (IPv4, IPv6),BGP4, BGP4+ (IPv6),GRE,IPv6 over IPv4 tunnels,VRF (IPv4 and IPv6),MSDP,RIP v1/v2, RIPng

Сертификаты соответствия

FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker EN 61000-6-3 Emission Standard,CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1; IEC60950-1; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products,EN 61000-6-1 Generic Immunity and Susceptibility; EN 55024 Immunity Characteristics; EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags,RoHS-compliant (6 of 6); WEEE-compliant,IEC 68-2-36, IEC 68-2-6,IEC 68-2-27, IEC 68-2-32

Таблица MAC-адресов

16 384

Транкинг

Максимальное количество портов в транке: 16,Максимальное количество групп транков: 128

Управление

DHCP Auto Configuration,Configuration Logging,Digital Optical Monitoring,Display Log Messages on Multiple Terminals,Embedded Web Management (HTTP/HTTPS),Embedded DHCP Server,Industry-standard Command Line Interface (CLI),Brocade Network Advisor (sold separately),Key-based activation of optional software features,USB file management and storage,Macro for batch execution,Out-of-band Ethernet Management,ERSPAN support for remote traffic monitoring,TFTP,TELNET Client and Server,Bootp,SNMPv1/v2c,DHCP Server and DHCP Relay,SNMPv3 Intro to Framework,Architecture for Describing SNMP Framework,SNMP Message Processing and Dispatching,SNMPv3 Applications,SNMPv3 User-based Security Model,SNMP View-based Access Control Model SNMP,sFlow,NTP Network Time Protocol,Multiple Syslog Servers,SCP,Virtual Cable Tester (VCT)

Управление трафиком

ACL-based inbound rate limiting and traffic policies,Broadcast, multicast, and unknown unicast rate limiting,Inbound rate limiting per port,Outbound rate limiting per port and per queue

Функции L2

802.1s Multiple Spanning Tree,802.1x Authentication,Auto MDI/MDIX,BPDU Guard, Root Guard,Dual-Mode VLANs,MAC-based VLANs, Dynamic MAC-based VLAN activation,Dynamic Voice VLAN Assignment,Dynamic VLAN Assignment,Fast Port Span,GVRP: GARP VLAN Registration Protocol,IGMP Snooping (v1/v2/v3),IGMP Proxy for Static Groups,IGMP v2/v3 Fast Leave,Inter-Packet Gap (IPG) adjustment,Link Fault Signaling (LFS),MAC Address Filtering,MAC Learning Disable,MLD Snooping (v1/v2),Multi-device Authentication,Per-VLAN Spanning Tree (PVST/PVST+/PVRST),Mirroring - Port-based, ACL-based, MAC Filter-based, VLAN-based,PIM-SM v2 Snooping,Port Loop Detection,Private VLAN,Remote Fault Notification (RFN),Single-instance Spanning Tree,Trunk Groups (static, LACP),Uni-Directional Link Detection (UDLD),Metro-Ring Protocol (MRP) (v1, v2),Virtual Switch Redundancy Protocol (VSRP),Q-in-Q,Topology Groups

Функции L3

IPv4 and IPv6 static routes,ECMP,Port-based Access Control Lists,Layer 3/Layer 4 ACLs,Host routes,Virtual Interfaces,Routed Interfaces,Route-only Support,Routing Between Directly Connected Subnets

Шум

0 dBA

Энергопотребление

до 245 Вт
