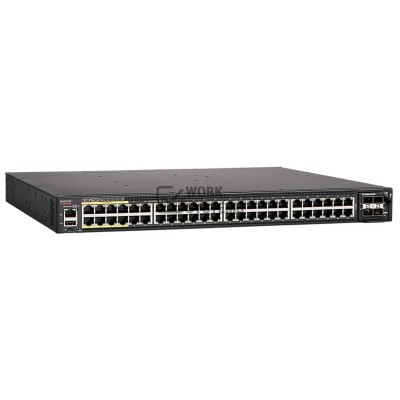

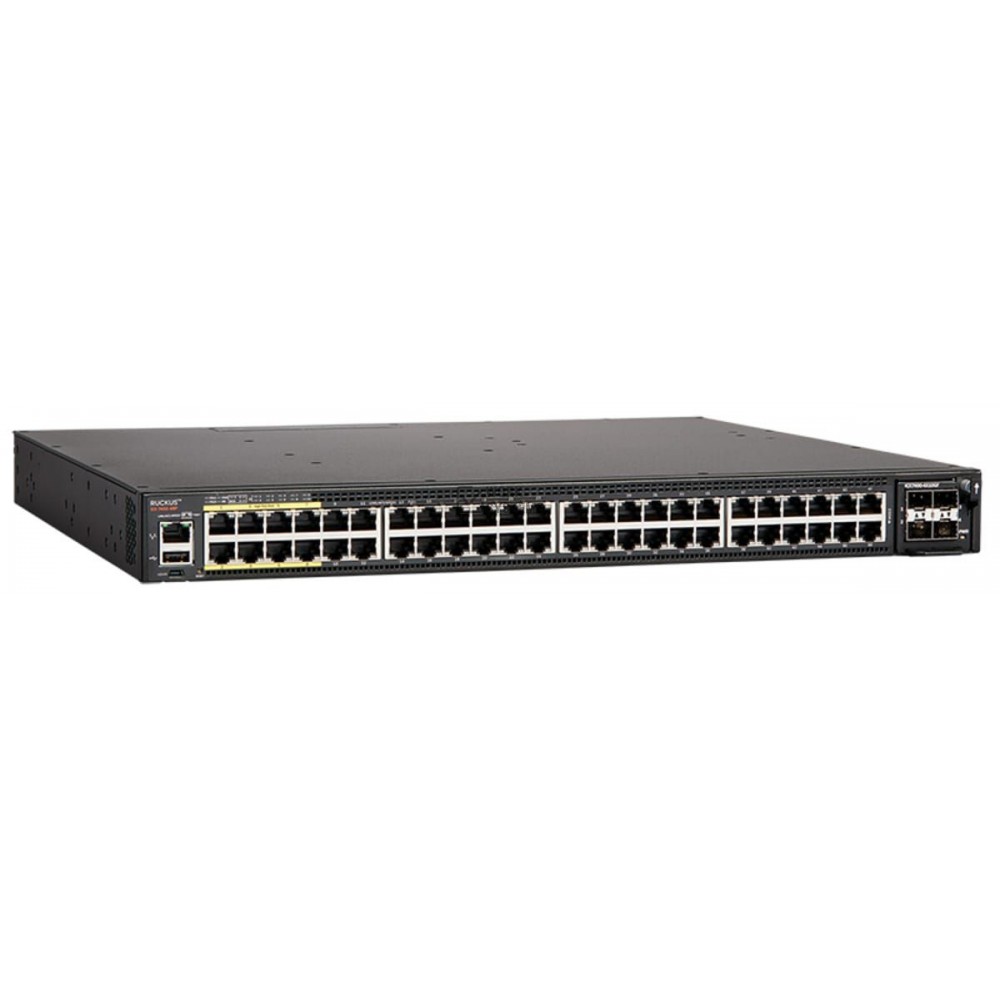

Коммутатор Ruckus ICX7450-48P-STK-E-RMT3

Характеристики коммутатора

AdvancediPv4/v6 layer 3 routing(OSPF, BGP, VRRP, PIM, PBR, VRF,

With license

Aggregated stacking bandwidth

960 Gbps

Base iPv4/v6 layer 3 routing(Static)

•

Fixed ports: 10/100/1000 Mbps RJ45

48

Forwarding capacity(data rate, full duplex)

250 Mpps

Input voltage/frequency

AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC

Maximum current draw(at 100 VAC, one power supply)

12.5 Amp

Maximum PoE Class 3 ports(15.4 W per port)

48(1 AC PSU)

Maximum PoE+ ports(30 W per port)

48(2 AC PSU)

Maximum PoH ports(90 W per port)

8(1 AC PSU)

Maximum stacking distance(distance between stacked switches)

10 km

Modular ports: 1 gbps sFP (max.)

4

Modular ports: 40 GbE QSFP+ (max.)

2

Modular service: iPsec VPN

With module

Modular slots

3

PoE power budget (AC)(two AC power supplies)

1,500 W

PoE power budget (DC)(two DC power supplies)

516 W

Power inlet (AC)

C14

Power supply rated maximum output (AC)

2×1,000 W

Power supply rated maximum output (DC)

2×510 W

stacking density(maximum switches in a stack)

12

stacking ports(Maximum ports3 usable for stacking)

Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+

switch power consumption4 (25°C)idle (no PoE load)10% traffic5

106 W930 W935 W

Switching capacity(data rate, full duplex)

336 Gbps
