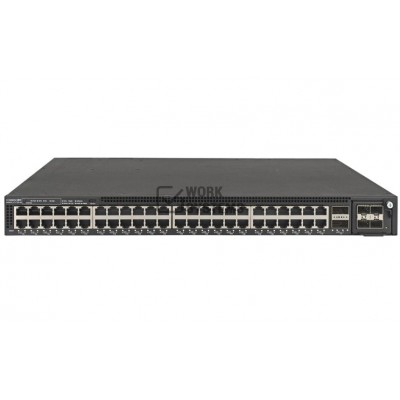

Коммутатор Ruckus ICX7550-48-E2

Характеристики коммутатора

Jumbo Frames

12288 B

NVRAM

4 Gb

QoS

ACL Mapping and Marking of ToS/DSCP (CoS),ACL Mapping and Marking of 802.1p,ACL Mapping to Priority Queue,Classifying and Limiting Flows Based on TCP Flags,DiffServ Support,Honoring DSCP and 802.1p (CoS),MAC Address Mapping to Priority Queue,Priority Queue Management using Weighted Round Robin,(WRR), Strict Priority (SP), and a combination of WRR and SP

SDN

OpenFlow v1.0 and v1.3,OpenFlow with hybrid port mode,Operates with OpenDaylight SDN Controllers and the applications running on the controller

VRF

128 instances

Безопасность

MACsec,802.1X authentication,MAC authentication,Flexible authentication,Web authentication,DHCP snooping,Dynamic ARP inspection,Neighbor Discovery (ND) Inspection,Tri-level Access Mode (EXEC, Privileged EXEC and Global Configuration),EAP pass-through support,EEE 802.1X username export in sFlow,Protection against Denial of Service (DoS) attacks Authentication, Authorization, and Accounting (AAA),MAC Address Locking MAC Port Security,Advanced Encryption Standard (AES) with SSHv2,RADIUS/TACACS/TACACS+,Secure Copy (SCP),Secure Shell (SSHv2),Local Username/Password,Change of Authorization (CoA) RFC 5176,Trusted Platform Module,Protected ports,RADSEC (RFC 6614),Encrypted Syslog (RFC 5425)

Буфер пакетов

8 Mb

Воздушный поток

Front-to-back

Групп Multicast

8192

Интерфейсы

48 x RJ45 10/100/1000 Mbps,2 x 40 Gbps QSFP (uplink / stacking),1 x Modular Slot

Климатические условия эксплуатации

температура от 0 до 45° C при влажности от 10 до 90%

Максимум PVLAN

256

Максимум VE

512

Максимум VLAN

4095

Максимум маршрутов

IPV4: 97280 (profile1), 8192 (profile2), 21504 (profile 3),IPV6: 8192 (profile1), 2048 (profile2), 17408 (profile 3)

Наработка на отказ

612 791 часов

Очередей QoS

48

Питание

2 x 400 W AC БП

Поддержка стандартов

802.1AB LLDP,802.1D MAC Bridging,802.1p Mapping to Priority Queue,802.1s Multiple Spanning Tree (MST),802.1w Rapid Reconfiguration of Spanning Tree,802.1x Port-based Network Access Control (PNAC),802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD),802.3ab 1000BASE-T,802.1 AX-2008 Link Aggregation,802.3ae 10 Gigabit Ethernet,802.3af Power over Ethernet,802.3at Power over Ethernet Plus,802.3bt 4-Pair Power over Ethernet,802.3u 100Base-TX,802.3x Full duplex and Flow Control,802.3z 1000Base-SX/LX,802.3bz Multi-gigabit Ethernet,802.3 MAU MIB (RFC 2239),802.3ba 40 and 100 Gbps Ethernet,802.1AE-MACsec (with license),802.3az Energy Efficient Ethernet,802.1Q VLAN Tagging

Пропускная способность

416 Gbps

Таблица MAC-адресов

16 K (profile1),114 K (profile2),32 K (profile3)

Тепловыделение

221.6 BTU/hr

Транкинг

Портов в транке: до 32,Групп транков: до 256

Управление

DHCP Auto Configuration,Configuration Logging,Digital Optical Monitoring,Display Log Messages on Multiple Terminals,Embedded Web Management (HTTP/HTTPS),Embedded DHCP Server,Industry-standard Command Line Interface (CLI),RUCKUS SmartZone, RUCKUS Cloud, RUCKUS Unleashed,Easy activation of optional software features,USB file management and storage,Boot from USB storage,Macro for batch execution,Out-of-band Ethernet Management,ERSPAN support for remote traffic monitoring,RSPAN,TFTP,TELNET Client and Server,Bootp,SNMPv1/v2c,DHCP Server and DHCP Relay,SNMPv3 Intro to Framework,Architecture for Describing SNMP Framework,SNMP Message Processing and Dispatching,SNMPv3 Applications,SNMPv3 User-based Security Model,SNMP View-based Access Control Model SNMP,sFlow,Network Time Protocol (NTP),Multiple Syslog Servers,SCP,Virtual Cable Tester (VCT),PTP Transparent clock

Управление трафиком

ACL-based inbound rate limiting and traffic policies,Broadcast, multicast, and unknown unicast rate limiting,Inbound rate limiting per port,Outbound rate limiting per port and per queue

Уровень шума

51 dBa

Функции L2

802.1s Multiple Spanning Tree,802.1x Authentication,Auto MDI/MDIX,BPDU Guard, Root Guard,Dual-Mode VLANs,MAC-based VLANs, Dynamic MAC-based VLAN activation,Dynamic Voice VLAN Assignment,Dynamic VLAN Assignment,Fast Port Span,MVRP: Multiple VLAN Registration Protocol,IGMP Snooping (v1/v2/v3),IGMP Proxy for Static Groups,IGMP v2/v3 Fast Leave,Inter-Packet Gap (IPG) adjustment,Link Fault Signaling (LFS),MAC Address Filtering,MAC Learning Disable,MLD Snooping (v1/v2),Multi-device Authentication,Per-VLAN Spanning Tree (PVST/PVST+/PVRST),Mirroring - Port-based, ACL-based, MAC Filter-based,PIM-SM v2 Snooping,Port Loop Detection,Private VLAN,Remote Fault Notification (RFN),Single-instance Spanning Tree,Trunk Groups (static, LACP),Uni-Directional Link Detection (UDLD),Metro-Ring Protocol (MRP) (v1, v2),Virtual Switch Redundancy Protocol (VSRP),Q-in-Q and selective Q-in-Q,VLAN Mapping,Topology Groups,VXLAN

Функции L3 (базовые)

IPv4 and IPv6 static routes,RIP v1/v2, RIPng,ECMP,Port-based Access Control Lists,Layer 3/Layer 4 ACLs,Host routes,Virtual Interfaces,Routed Interfaces,Route-only Support,Routing Between Directly Connected Subnets

Функции L3 (доступны при приобретении дополнительной лицензии)

IPv4 and IPv6 dynamic routes,OSPF v2, OSPF v3 (IPv6),PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4/IPv6 multicast routing functionality),PBR,Virtual Route Redundancy Protocol VRRP v3 (IPv6),VRRP-E (IPv4, IPv6),BGP4, BGP4+ (IPv6),GRE,IPv6 over IPv4 tunnels,VRF-lite (IPv4 and IPv6),MSDP

Энергопотребление

до 142.7 Вт
