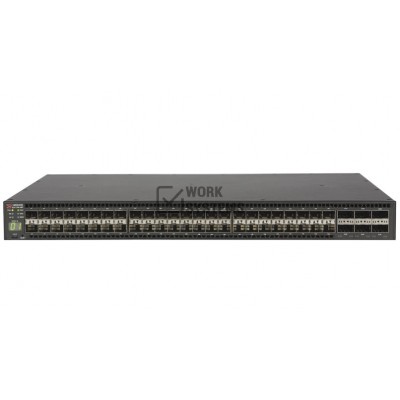

Коммутатор Ruckus ICX7750-48F

Характеристики коммутатора

Jumbo Frames

9 216 Байт

PVLAN

до 32

QoS

ACL Mapping and Marking of ToS/DSCP (CoS),ACL Mapping and Marking of 802.1p,ACL Mapping to Priority Queue,Classifying and Limiting Flows Based on TCP Flags,DiffServ Support,Honoring DSCP and 802.1p (CoS),MAC Address Mapping to Priority Queue,Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP,Priority Flow Control

RAM

8 Гб

STP

254

VLAN

до 4096

Безопасность

IPsec 128/256 AES-GCM (with service module),MACsec,802.1X Authentication,MAC Authentication,Flexible authentication,Web authentication,DHCP snooping,Dynamic ARP inspection,Neighbor Discovery (ND) Inspection,Bi-level Access Mode (Standard- and EXEC-level),EAP pass-through support,IEEE 802.1X username export in sFlow,Protection against Denial of Service (DoS) attacks,Authentication, Authorization, and Accounting (AAA),MAC Address Locking MAC Port Security,Advanced Encryption Standard (AES) with SSHv2,RADIUS/TACACS/TACACS+,Secure Copy (SCP),Secure Shell (SSHv2),Local Username/Password,RFC 5176, RFC 5996, RFC 4303, RFC 6379, RFC 5903, RFC 4868, RFC 4754, RFC 4106, SP800-56A Recommendation

Блок питания

2 x 500 W (AC, опционально),2 x 500 W (DC, опционально)

Групп Multicast

8 192 (Layer 2),6 144 (Layer 3)

Интерфейсы

48 x SFP+ 1/10 Gbps,6 x QSP 40 Gbps,1 x Modular Slot

Климатические условия эксплуатации

температура от -5 до 50° C при влажности от 10 до 95% без конденсации

Максимальная дистанция стекирования

10 км

Максимальное количество коммутаторов в стеке

до 12

Максимальное количество маршрутов

128K (IPv4),7K (IPv6),16 000 (Next Hop Addresses)

Наработка на отказ

353 967 часов

Очередей QoS

до 8 на порт

Поддержка IPv4/IPv6 Layer 3 Routing

есть

Пропускная способность

до 1.92 Тбит/с (до 5760 Гбит/с в стеке)

Расширенные функции IPv4/IPv6 Layer 3 Routing (OSPF, BGP, VRRP,

с дополнительной лицензией

Расширенные функции L3 (доступны с программной лицензией)

IPv4 and IPv6 dynamic routes,OSPF v2, OSPF v3 (IPv6),PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4/IPv6 multicast routing functionality),PBR,Virtual Route Redundancy Protocol VRRP v3 (IPv6),VRRP-E (IPv4, IPv6),BGP4, BGP4+ (IPv6),GRE,IPv6 over IPv4 tunnels,VRF (IPv4 and IPv6)

Слотов расширения

1

Таблица MAC-адресов

96 000

Тепловыделение

1116 BTU/час

Транкинг

Максимальное количество портов в транке: 16,Максимальное количество групп транков: 256x8

Управление

DHCP Auto Configuration,Configuration Logging,Digital Optical Monitoring,Display Log Messages on Multiple Terminals,Embedded Web Management (HTTP/HTTPS),Embedded DHCP Server,Industry-standard Command Line Interface (CLI),Brocade Network Advisor (sold separately),Key-based activation of optional software features,USB file management and storage,Macro for batch execution,Out-of-band Ethernet Management,ERSPAN support for remote traffic monitoring,TFTP,TELNET Client and Server,Bootp,SNMPv1/v2c,DHCP Server and DHCP Relay,SNMPv3 Intro to Framework,Architecture for Describing SNMP Framework,SNMP Message Processing and Dispatching,SNMPv3 Applications,SNMPv3 User-based Security Model,SNMP View-based Access Control Model SNMP,sFlow,NTP Network Time Protocol,Multiple Syslog Servers,SCP,Virtual Cable Tester (VCT)

Управление трафиком

ACL-based inbound rate limiting and traffic policies,Broadcast, multicast, and unknown unicast rate limiting,Inbound rate limiting per port,Outbound rate limiting per port and per queue

Функции L2

802.1s Multiple Spanning Tree,802.1x Authentication,Auto MDI/MDIX,BPDU Guard, Root Guard,Dual-Mode VLANs,MAC-based VLANs, Dynamic MAC-based VLAN activation,Dynamic Voice VLAN Assignment,Dynamic VLAN Assignment,Fast Port Span,GVRP: GARP VLAN Registration Protocol,IGMP Snooping (v1/v2/v3),IGMP Proxy for Static Groups,IGMP v2/v3 Fast Leave,Inter-Packet Gap (IPG) adjustment,Link Fault Signaling (LFS),MAC Address Filtering,MAC Learning Disable,MLD Snooping (v1/v2),Multi-device Authentication,Per-VLAN Spanning Tree (PVST/PVST+/PVRST),Mirroring - Port-based, ACL-based, MAC Filter-based, VLAN-based,PIM-SM v2 Snooping,Port Loop Detection,Private VLAN,Remote Fault Notification (RFN),Single-instance Spanning Tree,Trunk Groups (static, LACP),Uni-Directional Link Detection (UDLD),Metro-Ring Protocol (MRP) (v1, v2),Virtual Switch Redundancy Protocol (VSRP),Q-in-Q,Topology Groups,MCT (Ruckus Multi-Chassis Trunking)

Функции L3

IPv4 and IPv6 static routes,ECMP,Port-based Access Control Lists,Layer 3/Layer 4 ACLs,Host routes,Virtual Interfaces,Routed Interfaces,Route-only Support,Routing Between Directly Connected Subnets,Virtual Route Redundancy Protocol (VRRP)

Шум

62 dBA

Энергопотребление

до 327 Вт
